FLSUN Speeder Pad :One Pad to Multiple Printers

FLSUN Speeder Pad :One Pad to Multiple Printers

The worldwide first, highly integrated Klipper-based 3D printing device for most FDM 3D printers. FLSUN Speeder Pad can support 9 printers by default and control 3 printers simultaneously on 1 Pad,print speed is increased by 2-5 times. input shaper, improving speed while ensuring quality.

Core advantages: Klipper, High Adaptability, High Speed, Wifi, Large Size, Remote Monitoring. And pre-installed full klipper firmware, support online upgrade or offline upgrade through U disk/SD card. Model preview is more intuitive.

So, how do you connect the Pad to a printer and then print?

If you only need to connect one printer:

Step 1: Download and flash the firmware

  • Your motherboard chip model isn't 2560,download the required firmware from the official website or github and flash it to the printer.

 Official website download:Speeder Pad – flsun3d

github download: https://github.com/Flsun3d/Speeder-PAD---printer-firmware

  • Your motherboard chip model is 2560 (if you are e models: you should unplug the printer screen first), skip the process of flashing the printer firmware.

Step 2: Connect the Pad to the printer

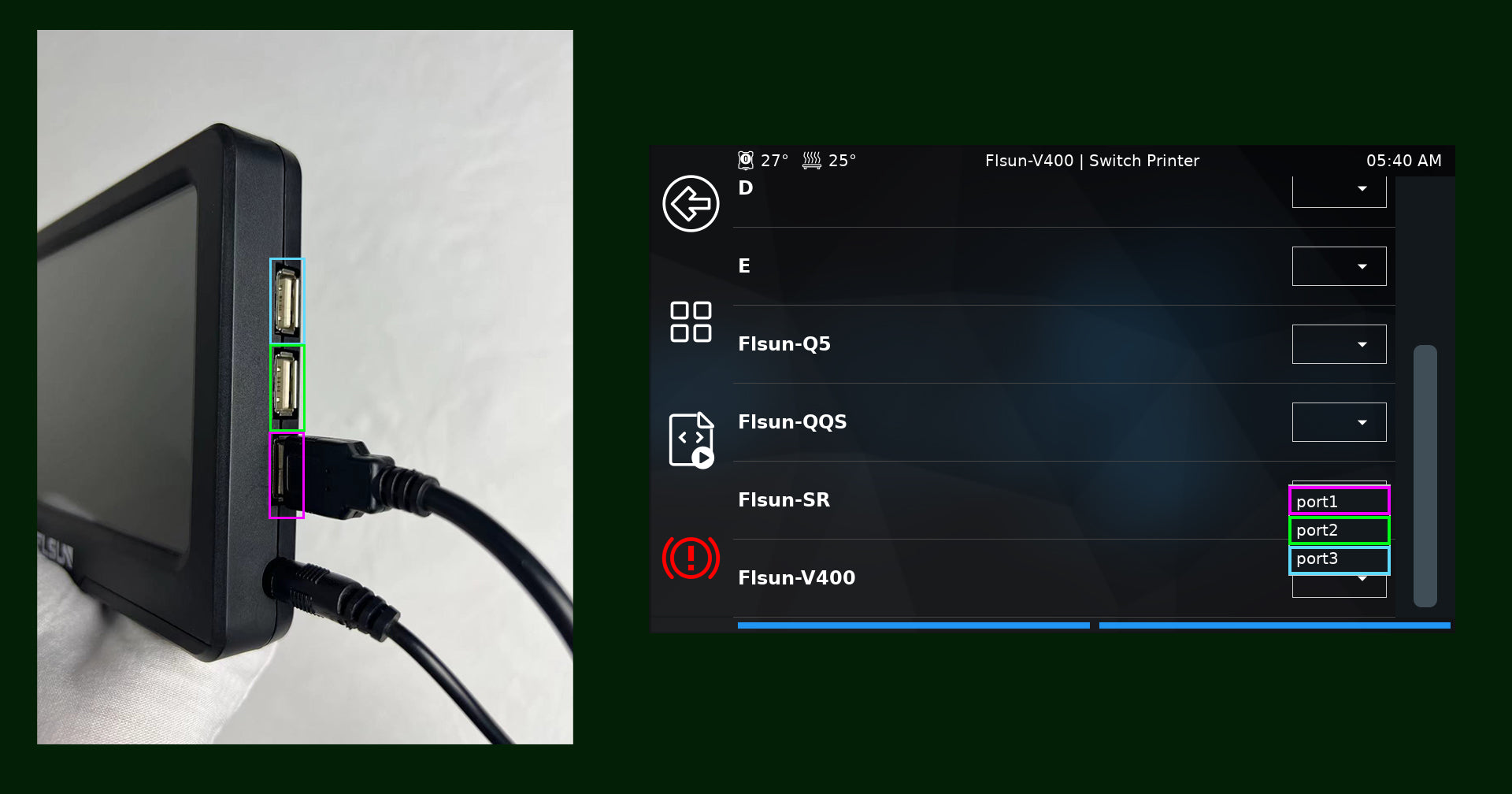

Connect the Pad's port 1 (the ports on the right side are port1, port2, port3 from bottom to the top,and they Corresponding to Flsun1, Flsun2, Flsun3) and the printer, take out the adapter and power on the Pad. Click "switch printer" and select your printer, wait for the PAD to restart.

If you want to connect multiple printers:

Step 1: Download and flash the firmware (refer to above)

Step 2: Connect the Pad to the printer

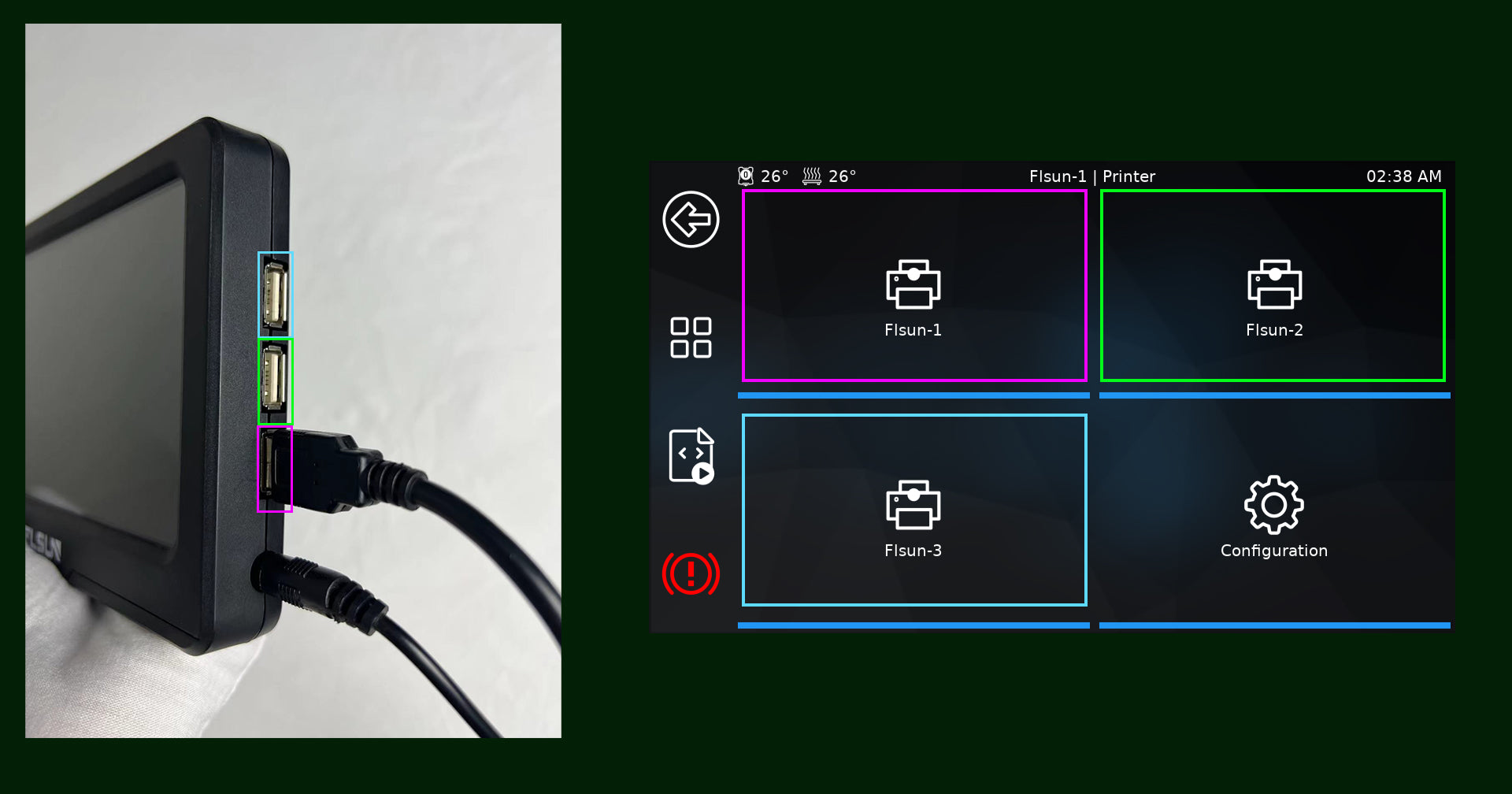

take out the adapter and power on the Pad, click "Actions→Printer→Configuration", then connect Port 1, Port 2, Port 3 on the Pad with your printer.

Note: Printers and ports are one-to-one. If they do not correspond, they may heat up quickly and cause thermal runaway.

The supported machine chip models of the printers available for replacement in models a are: stm103/stm401  sizes:235*235*270

b models support the machine chip model: stm103  size: 235 * 235 * 250

c models support the machine chip model: 2560  size: 300 * 300 * 400

d models support the machine chip model: rstm103  size: 245*245*260

e models support the machine chip model: 2560  size: 310*310*400

FLSUN Speeder PAD is FLSUN's response to the diverse needs of countless 3D printing enthusiasts, of course, it is much more than that, FLSUN will continue to develop and optimize Speeder Pad, if you need to add which printer or have any suggestions?

Please send your suggestions to us in the email: service@flsun3d.com.
